• Drivetrain, rear-wheel drive

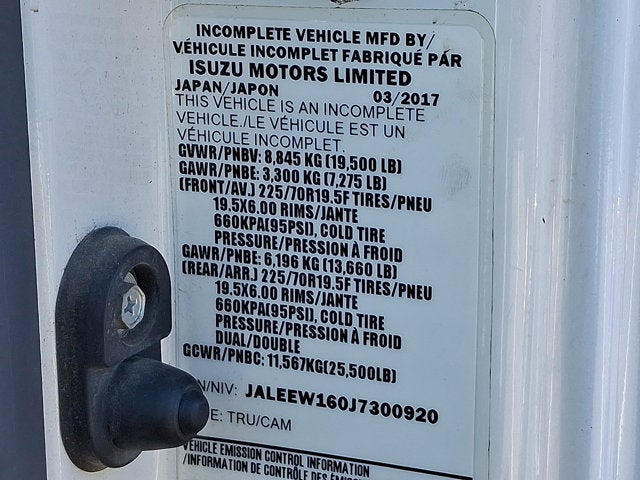

• Incomplete vehicle certification

• Daytime Running Lamps

Preferred Equipment Group

• Standard Equipment

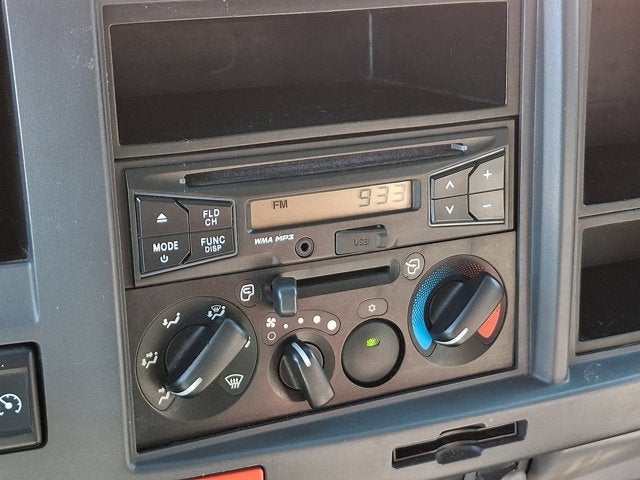

• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AUXILIARY INPUT AND USB PORT (STD)
• ARC WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL INTEGRAL IN-DASH MOUNTED
• PIO COLD WEATHER PACKAGE includes engine block heater and a heated fuel filter

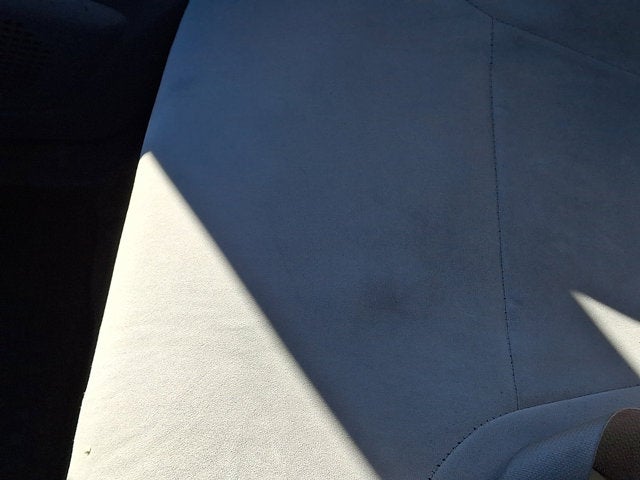

• VERY DARK PEWTER CLOTH SEAT TRIM
• PIO BACK UP ALARM

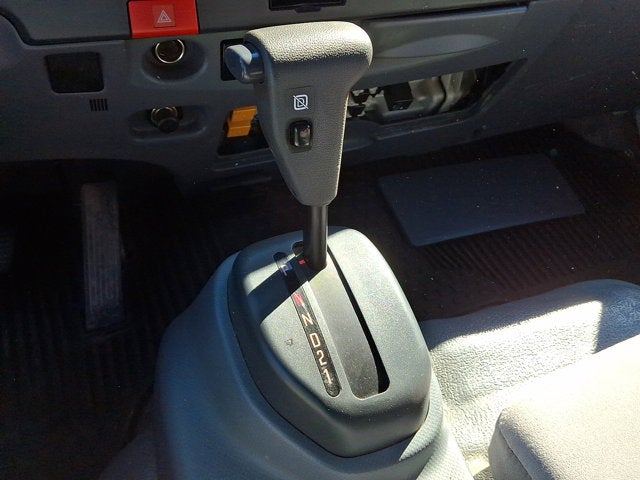

• TRANSMISSION 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION with fifth and sixth gear overdrive with lock up in 2nd 3rd 4th 5th and 6th PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
• PIO MIRROR OUTSIDE LEFT HAND AND RIGHT HAND HEATED

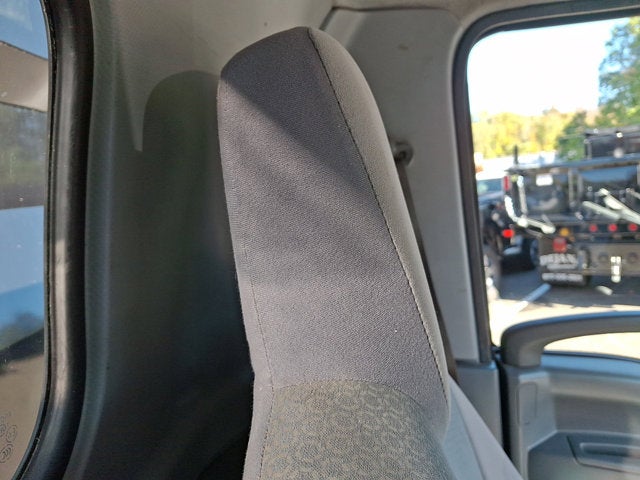

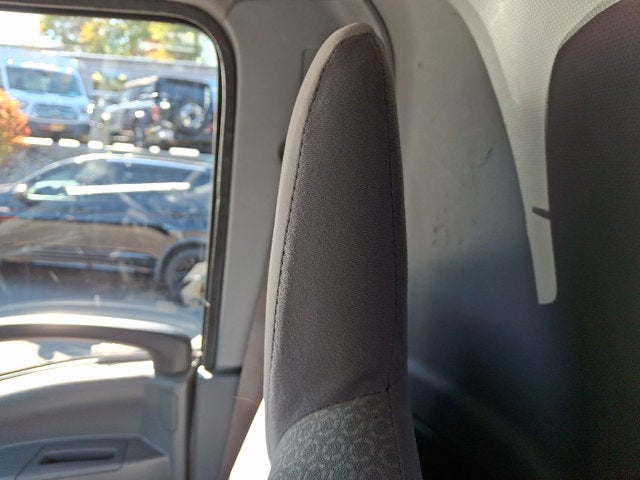

• SEAT FRONT HIGH BACK BUCKET DRIVER AND PASSENGER tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat (STD)
• ENGINE DIESEL 5.2L 4 CYLINDER 215 hp [160.3 kW] @2500 rpm 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve four cycle chain-driven dual overhead camshaft valve train a cast iron cylinder block and a cast aluminum cylinder head. Turbocharged inter-cooled water cooled EGR direct injection electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure high coolant temperature and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
• PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• REAR AXLE 5.57 RATIO

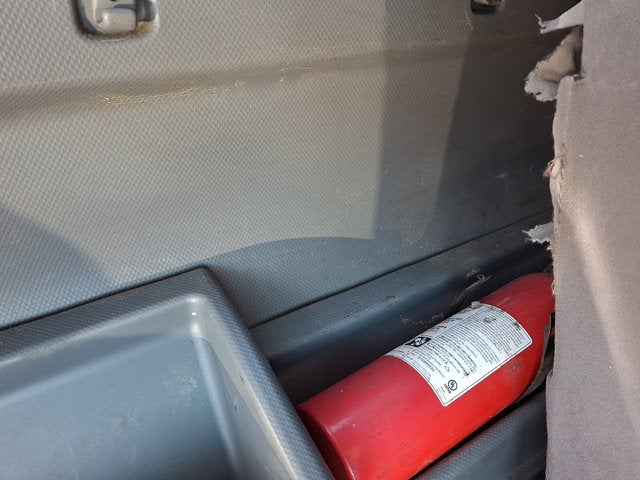

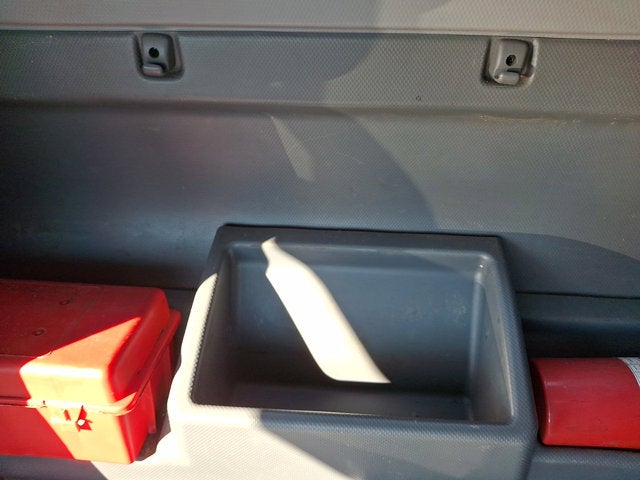

• PIO FIRE EXTINGUISHER AND SAFETY REFLECTOR MOUNTING PROVISIONS
• AXLE LIMITED SLIP
• Cruise Control
• Turbocharged
• Rear Wheel Drive
• ABS
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Running Boards/Side Steps
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• Cloth Seats
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• Daytime Running Lights

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3 x
• Rear Drum Diam x Width (in): 14.6 x 5.91
• Cooling System
• Total Cooling System Capacity (qts): 19.7
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 140
• Exterior Dimensions
• Cab to Axle (in): 86.50
• Cab to End of Frame (in): 129.60
• Frame Width, Rear (in): 33.50
• Front Bumper to Back of Cab (in): 70.70
• Ground Clearance, Front (in): 7.50
• Ground Clearance, Rear (in): 7.50
• Ground to Top of Frame (in): 33.00
• Height, Overall (in): 92.40
• Length, Overall w/o rear bumper (in): 200.50
• Overhang, Front (in): 48.30
• Overhang, Rear w/o bumper (in): 43.10
• Wheelbase (in): 109.00
• Width, Max w/o mirrors (in): 81.30
• Frame
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 x 2.76 x 0.24
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 7.20
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.0
• Fuel Tank Location: Frame Rail
• Interior Dimensions
• Front Head Room (in): 38.40
• Front Hip Room (in): 67.70
• Front Leg Room (in): 29.50
• Front Shoulder Room (in): 70.70
• Passenger Capacity: 3
• Medium Duty Performance
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.7639
• Steering
• Steering Ratio (:1), At Lock: 18.8-20.9
• Steering Ratio (:1), On Center: 18.8-20.9
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 32.8
• Turning Diameter - Wall to Wall (ft): 38.7
• Summary
• Body Style: Regular Cab Chassis Cab

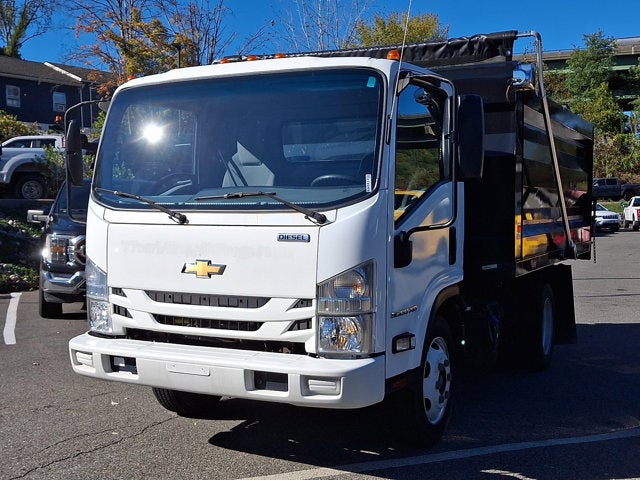

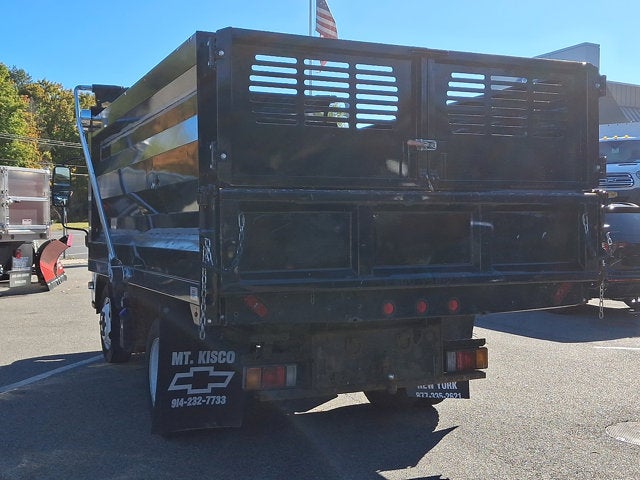

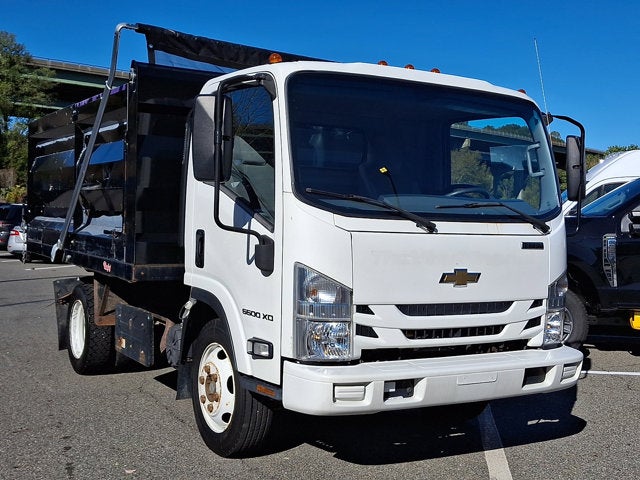

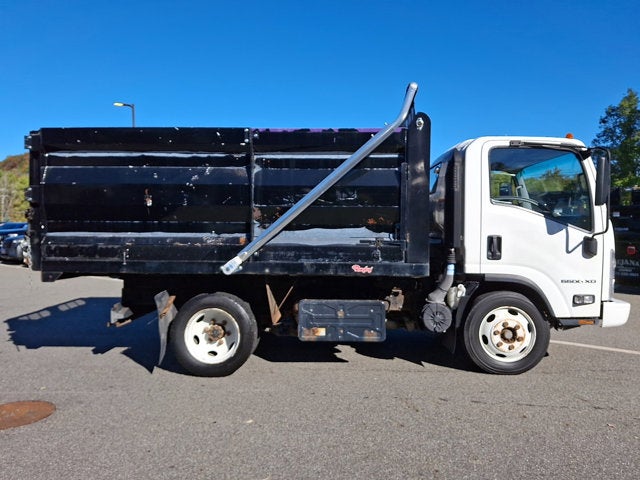

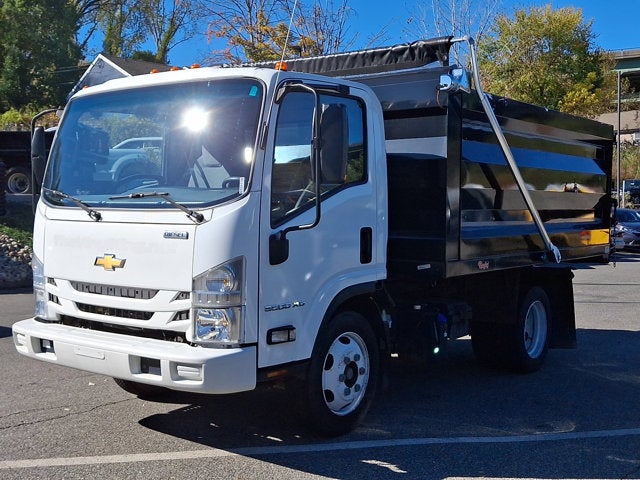

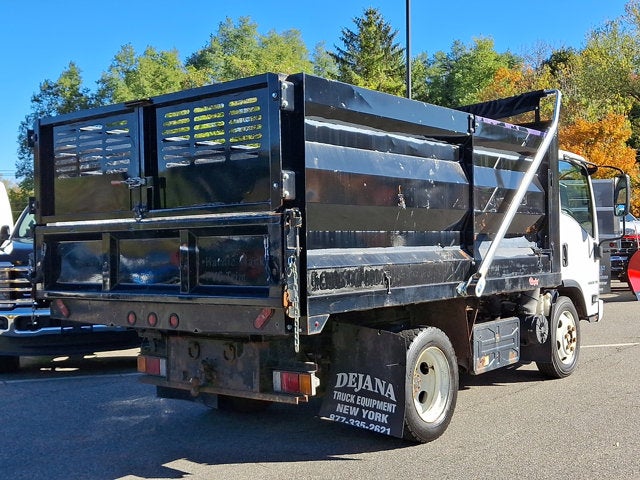

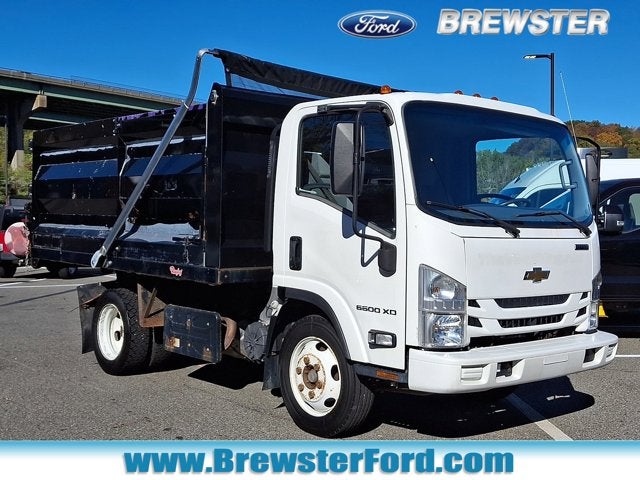

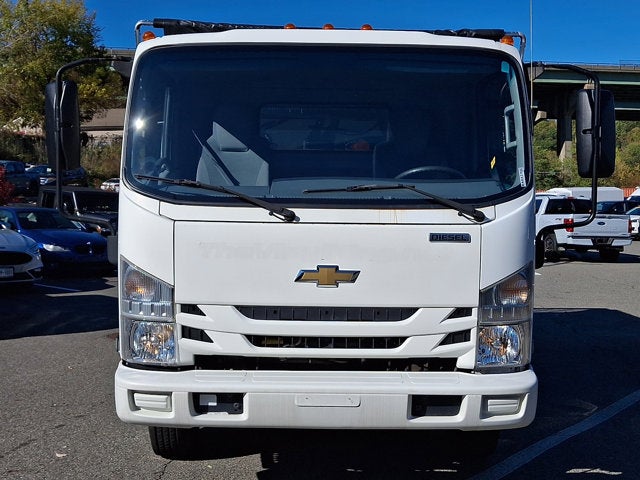

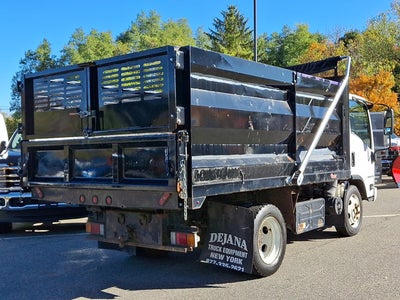

• Vehicle Name: Chevrolet 5500XD LCF Diesel
• Suspension
• Axle Capacity - Front (lbs): 7275
• Axle Capacity - Rear (lbs): 14550
• Axle Ratio (:1) - Rear: 5.571
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Spring Capacity - Front (lbs): 8440
• Spring Capacity - Rear (lbs): 14550
• Stabilizer Bar Diameter - Front (in): 1.65
• Suspension Type - Front: Independent w/Tapered Leaf Springs
• Suspension Type - Rear: Independent w/Multi-Leaf Springs
• Tires
• Front Tire Capacity (lbs): 3640
• Front Tire Order Code: 2TB
• Front Tire Size: 225/70R19.5
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 3415
• Rear Tire Order Code: 3TB
• Rear Tire Size: 225/70R19.5
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 4145
• Curb Weight - Rear (lbs): 2480
• Gross Axle Wt Rating - Front (lbs): 7275
• Gross Axle Wt Rating - Rear (lbs): 13660
• Gross Combined Wt Rating (lbs): 25500
• Gross Vehicle Weight Rating Cap (lbs): 19500

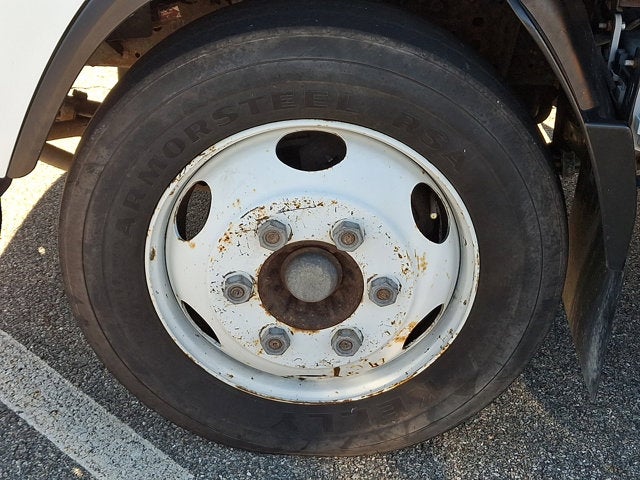

• Wheels
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Front Wheel Material: Steel
• Front Wheel Offset (mm): 127
• Front Wheel Size (in): 19.5 x 6.0
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Rear Wheel Material: Steel
• Rear Wheel Offset (mm): 127
• Rear Wheel Size (in): 19.5 x 6.0
