• 2 LCD Monitors In The Front
• 2 Seatback Storage Pockets
• 3 12V DC Power Outlets
• 3 12V DC Power Outlets and 2 Interior 120V AC Power Outlets
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• 6 Speakers
• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
• Air Filtration
• Cloth 40/20/40 Split Bench Seat -inc: 20% center under-seat storage, center armrest, cupholder, storage, 2-way adjustable driver/passenger headrests and driver's side manual lumbar
• Compass
• Cruise Control w/Steering Wheel Controls
• Day-Night Rearview Mirror
• Delayed Accessory Power
• Digital/Analog Appearance
• Driver And Passenger Visor Vanity Mirrors
• Driver Information Center
• Fade-To-Off Interior Lighting
• Fixed Antenna
• Front And Rear Map Lights
• Front Center Armrest w/Storage
• Front Cupholder
• Full Cloth Headliner
• Full Overhead Console w/Storage, 3 12V DC Power Outlets and 2 Interior 120V AC Power Outlets
• HVAC -inc: Underseat Ducts
• Instrument Panel Covered Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and Locking 1st Row Underseat Storage
• Interior Trim -inc: Metal-Look Instrument Panel Insert and Chrome Interior Accents
• Locking Glove Box
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Outside Temp Gauge
• Perimeter Alarm
• Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
• Power Door Locks w/Autolock Feature
• Power Rear Windows
• Radio w/Seek-Scan, Clock, Speed Compensated Volume Control and Aux Audio Input Jack
• Rear Cupholder
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Seats w/Cloth Back Material
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Smart Device Integration
• SYNC 4 -inc: 8" center display, wireless phone connection, cloud connected, AppLink w/app catalog, 911 Assist, Apple CarPlay and Android Auto compatibility and digital owner's manual
• Trip Computer
• Urethane Gear Shifter Material
• Wireless Phone Connectivity

• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
• 4.88 Axle Ratio
• 40 Gal. Fuel Tank
• 50-State Emissions System
• 68-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
• Auto Locking Hubs
• Dual 250 Amp Alternator
• Dual Rear Wheels
• Electronic Transfer Case
• Firm Suspension
• Front And Rear Anti-Roll Bars
• Front Suspension w/Coil Springs
• GVWR: 18,000 lbs Payload Package
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Part-Time Four-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Towing Equipment -inc: Brake Controller and Trailer Sway Control
• Trailer Wiring Harness
• Upfitter Switches

• Collision Mitigation-Front
• Driveline Traction Control
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Emergency Sos Capability
• Lane Departure Warning
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
• Pre-Collision Assist with Automatic Emergency Braking (AEB)
• Rear Child Safety Locks
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Side Impact Beams
• Tire Specific Low Tire Pressure Warning

410 Amp Dual Alternators

• 250 Amp + 160 Amp

High Capacity Trailer Tow Package

• Trailer Brake Wiring Kit
• Increases Gcw From 32
• 500 Lbs
• To 40
• 000 Lbs
• Note: Salesperson's Portfolio Or Trailer Towing Guide Should Be Consulted For Specific Trailer Towing Or Camper Limits And Corresponding Required Equipment
• Axle Ratios And Model Availability
• See Supplemental Reference For Vehicle Height Consideration

Rear View Camera & Prep Kit

• Pre-Installed Content Includes Cab Wiring And Frame Wiring To The Rear Most Cross Member
• Upfitters Kit Includes Camera W/Mounting Bracket
• 20' Jumper Wire And Camera Mounting/Aiming Instructions

Snow Plow Prep Package

• Pre-Selected Springs (See Order Guide Supplemental Reference For Springs/Fgawr Of Specific Vehicle Configurations)
• Note 1: Restrictions Apply; See Supplemental Reference Or Body Builders Layout Book For Details
• Note 2: Also Allows For The Attachment Of A Winch
• Note 3: Highly Recommended To Add (86M) Dual Battery On 7.3L Gas Engine
• Adding (67B) 410 Amp Dual Alternators For Diesel Engine Is Highly Recommended For Max Power Output

Transmission: Torqshift 10-Speed Automatic

• Selectshift
• Selectable Drive Modes: Normal
• Tow/Haul
• Eco
• Slippery Roads And Off-Road And Transmission Power Take-Off Provision (Std)

Additional Packages

• Limited Slip W/4.30 Axle Ratio
• Platform Running Boards
• Transfer Case Skid Plates

• 17V 473 68H X4L 166 18B 535 41P 64D 67B 86S 872 8 44G

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250 & 160
• Weight Information
• Base Curb Weight (lbs): 8146
• Base Curb Weight (lbs): 7398
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 6500
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 14706
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 4209
• Curb Weight - Rear (lbs): 3189
• Gross Vehicle Weight Rating Cap (lbs): 19550
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Gross Combined Wt Rating (lbs): 40000
• Gross Combined Wt Rating (lbs): 30000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5300
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Front (lbs): 6500
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 14706
• Spring Capacity - Rear (lbs): 13660
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 14706
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.4
• Rear Brake Rotor Diam x Thickness (in): 15.8
• Tires
• Front Tire Order Code: TGJ
• Rear Tire Order Code: TGJ
• Front Tire Size: LT225/70SR19.5
• Rear Tire Size: LT225/70SR19.5
• Front Tire Capacity (lbs): 7500
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 647
• Revolutions/Mile @ 45 mph - Rear: 647
• Wheels
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Size (in): 19.5 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 51.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 179
• Length, Overall (in): 265.2
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 82.8
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

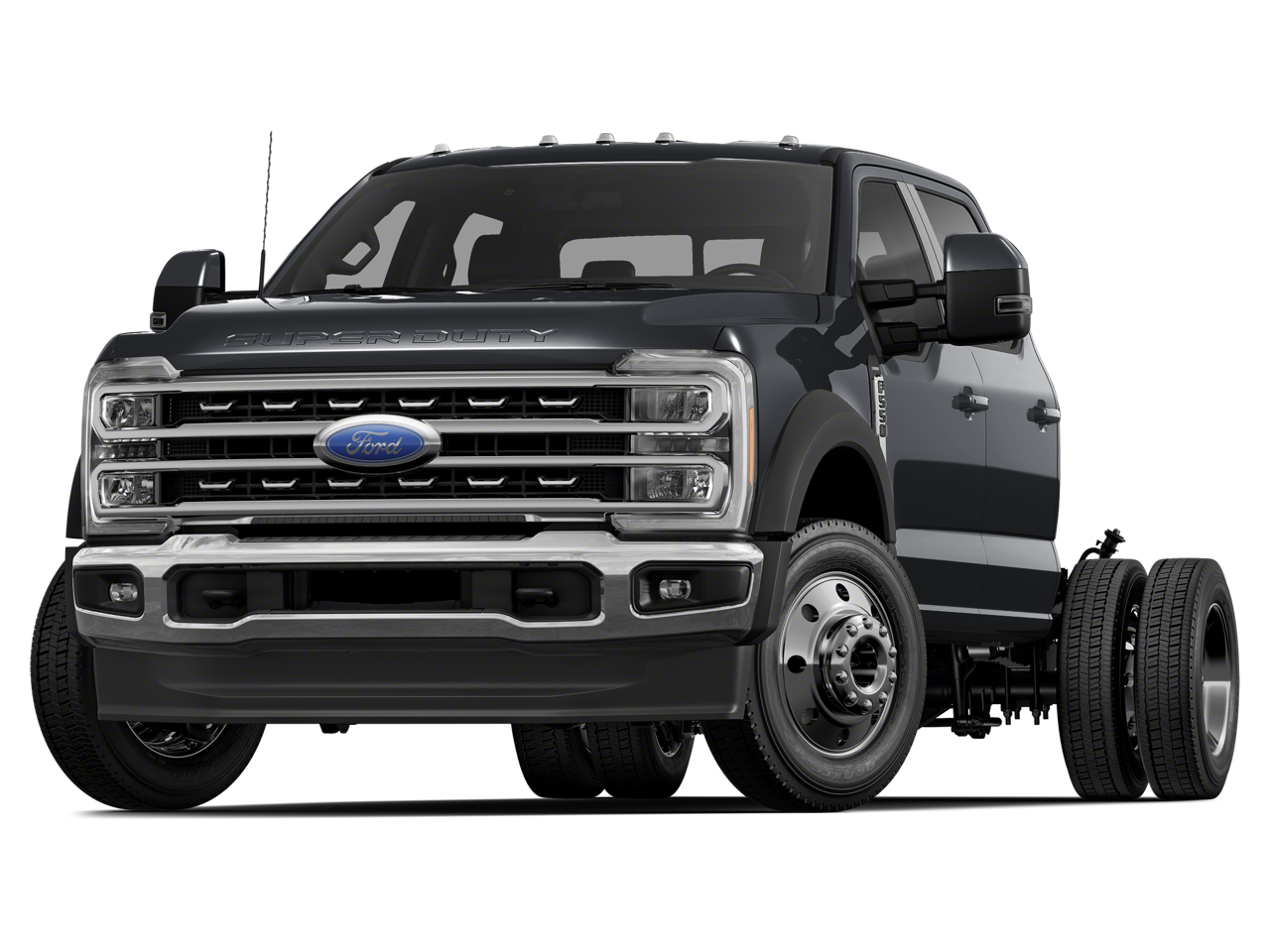

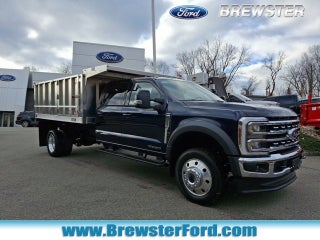

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: SD Crew Cab
• Body Code: H
